Reese Towpower® Wiring Connector 4-Way Flat Extension Length Wire

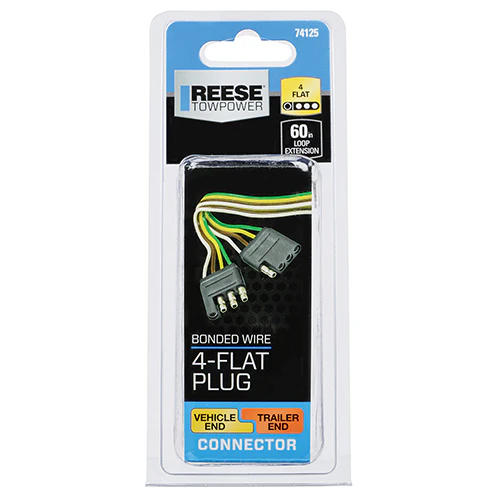

The REESE Towpower 4-way flat complete connector loop is designed to handle basic lighting connections on small trailers. It features 18 gauge bonded wire and conforms to SAE spec J1128 which will allow it to fit most 4-flat connectors on the market. The loop style connector can be used as an extension or cut and spliced to meet your needs when repairing existing connectors on either the vehicle or the trailer.

• Comes with both car and trailer connectors
• Features 18 gauge bonded wire
• Ground wire runs full length of assembly
• Tin plated terminals
• Bolded wire for a clean neat appearance
• Rated for 7.5 amps per circuit
• Ground wire runs full length of assembly
• Conforms to SAE spec. J1128

SPECIFICATIONS

BRAND:	REESE TOWPOWER
PART NUMBER:	74125
WARRANTY:	LIMITED 1 YEAR WARRANTY
UPC:	016118741254
DIMENSIONS:	1.99" X 2.9" X 6.9" (SHIPPING)
WEIGHT:	0.2 LBS



PART NO: 74123

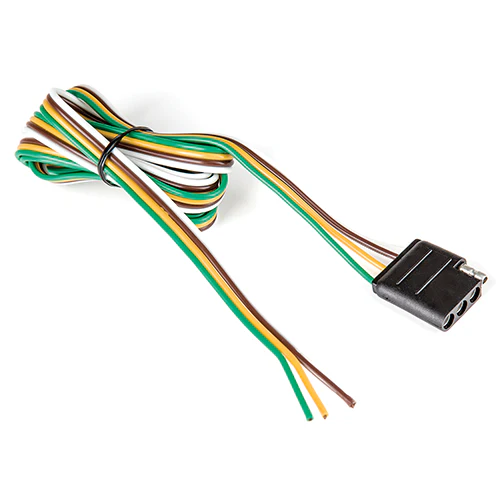

REESE Towpower 4-way flat, vehicle end connector allows for the electrical connection between the towing vehicle and the towed trailer. The simple 4-wire connection activates the trailer's stop, turn and tail-lights.

• Compatible with most commonly used trailer plugs
• 60 In. vehicle connector
• Used when towing light duty trailers with basic wiring
• Tin plated terminals
• Bolded wire for a clean neat appearance.
• Rated for 7.5 amps per circuit
• Ground wire runs full length of assembly
• Conforms to SAE spec. J1128

SPECIFICATIONS

BRAND:	REESE TOWPOWER
PART NUMBER:	74123
WARRANTY:	LIMITED 1 YEAR WARRANTY
UPC:	016118741230
DIMENSIONS:	2" X 2.9" X 7" (SHIPPING)
WEIGHT:	0.25 LBS
